Billet Cranes



Billet handling cranes (billet handling crane)

The billet handling crane (billet handling cranes) is a highly maneuverable electric bridge crane and a special equipment for handling billets.

Brief introduction of Weihua billet handling crane (billet handling cranes)
Weihua billet handling cranes (billet handling cranes) include two types: clamp-type billet handling cranes and electromagnetic hanging beam billet handling cranes. It is mainly used to transport high-temperature billets to billet warehouses in continuous casting billets across the production line, and to transport normal-temperature billets and slabs in heating furnaces or warehouses for stacking, loading and unloading vehicle operations.

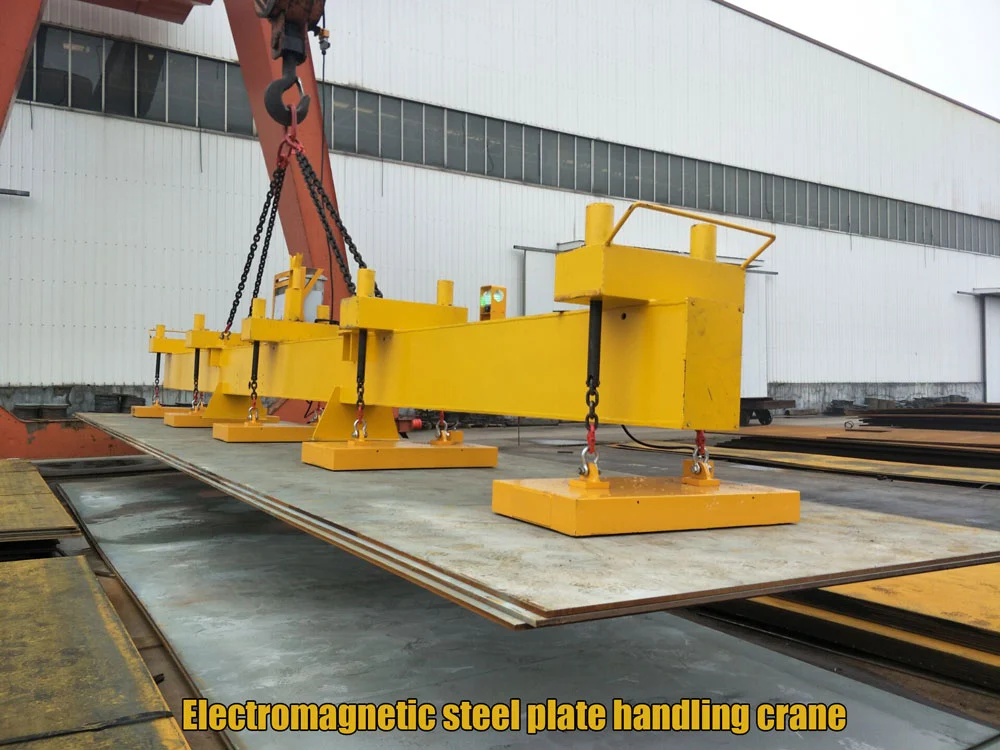

We also offer Electromagnetic steel plate handling crane

With the experience and knowledge of millions of cases, Weihua provides you with the safest, most stable and highest level according to your different needs and operating environment with the absolute advantages of the leading technology, the largest scale manufacturing and fast delivery in the lifting industry. A full range of cost-effective billet handling cranes, and can be customized according to your individual needs to meet your various applications, improve efficiency and save costs for you.
Weihua clamp-type billet handling crane can lift slabs or blooms with a thickness of more than 150mm and high-temperature billets with a thickness of more than 650°C.
Weihua electromagnetic hanging beam billet handling crane is mainly used for the professional lifting equipment for continuous casting billet span, continuous rolling workshop or warehouse yard to lift and move billet, or steel plate, billet, section steel and steel pipe with temperature below 650℃.
Weihua billet handling cranes can provide according to customer requirements: speed regulation of each mechanism (1:10 or greater), overload and alarm, remote control, PLC control and fault detection, display system, etc.



Weihua Billet Handling Crane Types

Weihua clamp-type billet handling cranes include flexible clamp-type billet handling cranes, rigid clamp-type billet handling cranes, gravity clamp-type billet handling cranes, and clamp-type billet handling cranes with special structural styles, etc. types.
Weihua flexible clamp type billet handling crane: It has the characteristics of light weight and high winding technology. The main hoisting mechanism and the clamp are connected by wire ropes. The wobble of the clamping device is reduced by the precise design of the wire rope winding system.
Weihua rigid clamp type billet handling crane: It has the characteristics of easy alignment, high efficiency and good safety. The middle of the power hoisting wire rope is provided with a single-layer or multi-layer guide cylinder. Shaking of the device during operation.
Weihua gravity clamp type billet handling crane: It has the characteristics of simple structure, and the structure is the same as that of general bridge cranes. The billet clamp is suspended on the spreader (single and double hook) of the main lifting mechanism. Closing mechanism, special simple clamp device with locking function.

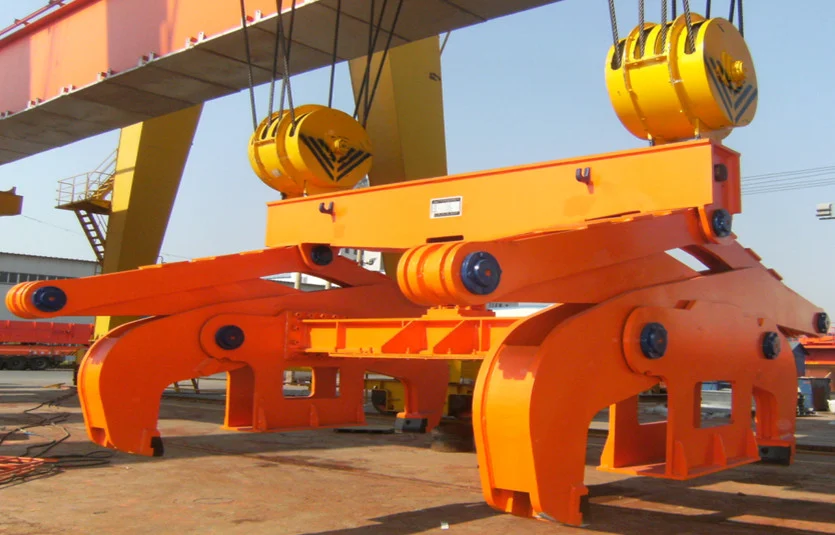

Weihua's special-demand structural style clamp-type billet handling crane: according to the industry characteristics of the demand application scenario, customize different clamp forms, such as automatic billet clamp, electric winch automatic rod billet clamp, electric translation type billet clamp, Automatic trapezoidal billet clamps, and hydraulic billet clamps, etc.
Weihua electromagnetic hanging beam billet handling crane: there are flexible electromagnetic hanging beam billet handling crane, rigid electromagnetic hanging beam billet handling crane and multi-structure electromagnetic hanging beam billet handling crane.

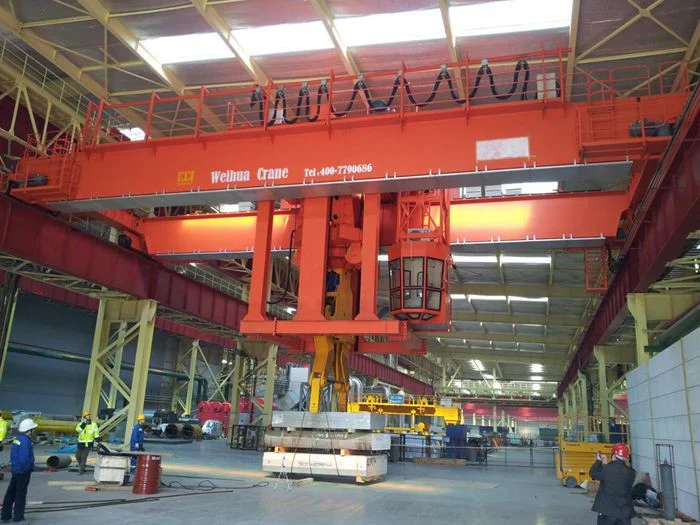

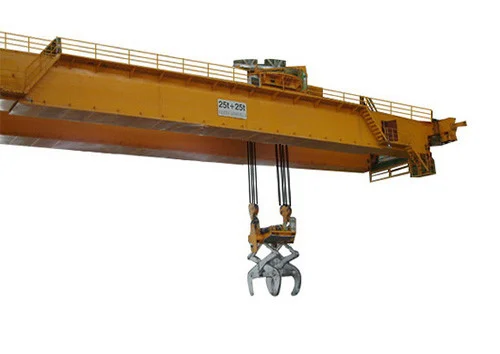

Weihua Clamp Type Billet Handling Crane

Weihua clamp-type billet handling crane features

① Lifting stator voltage regulation, frequency conversion operation, stable lifting operation and small impact;
②The main electrical is placed inside the main beam, which prolongs the life of electrical components and reduces electrical control failures;
③Equipped with an industrial air cooler to ensure a good working environment and temperature;
④Integral processing of structural parts to ensure installation accuracy;
⑤It can be equipped with different clamps according to the specifications (thickness, length, quantity, etc.) and weight of the materials to be lifted to meet the requirements of lifting;
⑥The lifting adopts the structure of double mechanism and four brakes, and the motor has an overspeed switch, which ensures the stable, safe and reliable lifting;
⑦The double lifting point clamp spreader is locked by its own weight, and the opening and closing device is positioned to automatically realize the opening and closing of the jaws, without consuming electricity, which is conducive to environmental protection. Simple structure, convenient manufacture, low price, small size and light weight;
⑧Intelligent functions, semi-automatic and fully automatic functions;
⑨ Regenerative braking to save energy;
⑩ Traveling speed up to 150 m/min.





Weihua clamp-type billet handling crane product advantages:

①Safe and stable, fast and stable, good balance;
②Intelligent, anti-swing, target positioning, convenient operation;
③ 24 hours of continuous operation;
④Accurate and fast operation, up to 150 m/min operation speed;
⑤The clamps can be replaced with other types of spreaders to flexibly achieve a variety of application purposes;
⑥The electronic control core is matched with international big brands;
⑦Mobile cab, good visibility and convenient operation;
⑧Easy to deal with various complex environments;
⑨Can provide remote service guidance to quickly solve various problems;
⑩Energy saving and environmental protection, convenient maintenance and high cost performance.





Specifications of Weihua Clamp Type Billet Handling Crane:

Clamp-type billet handling cranes can be customized according to different environments and operational needs.
The basic specification range of Weihua products:
Lifting weight: 20t~150t
Span: 17m~39m
Lifting height: 5m~23m
Working level: A7~A8

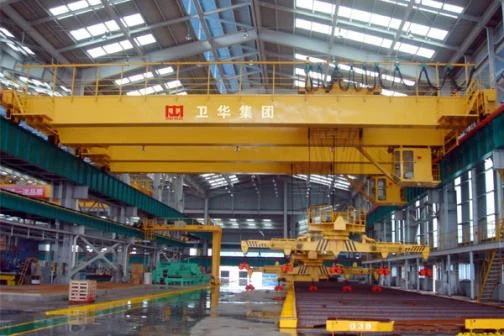

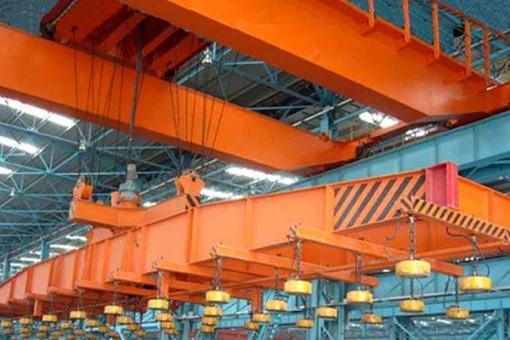

Weihua Electromagnetic Hanging Beam Billet Handling Crane

Features of Weihua Electromagnetic Hanging Beam Billet Handling Crane

① Lifting overload protection device;
② Crane travel limit switch;
③ Decompression protection;
④Emergency shutdown device;
⑤ Current overload protector;
⑥Polyurethane buffer;
⑦Main electrical system, supporting international big brands
⑧Electromagnet sucker, easy to disassemble and repair;
⑨Independent control system: wireless control or cab control;
⑩Three types of access to the cab: end, side and top access;
⑪The weight of the crane does not include the weight of the electromagnetic chuck and its components;
⑫ The box beam structure is welded by robots with high strength;
⑬Heavy duty slip ring motor, the best quality in China;
⑭ Hubs, drums, gears and couplings are manufactured by high-quality CNC with the best quality;
⑮Electromagnetic chuck is powered by cable reel independently;
⑯With power failure and magnetic protection function, it can prevent heavy objects from falling due to accidental power failure.
⑰The lifting brake has a manual release function, and the electromagnetic sucker and heavy objects suspended in the air can be quickly and smoothly put down in a fault state to avoid safety accidents;





Weihua Electromagnetic Hanging Beam Billet Handling Crane Product Advantages

①Safe and stable, stable operation, convenient maintenance, high cost performance;
②Flexible hanging beam billet handling crane. The hanging beam is flexibly suspended on the hoisting wire rope or hook group. The hanging beam has two structural forms: vertical main beam and parallel main beam. It has a wide range of applications and is widely used in steel mills cold rolling production line;
③For the rigid hanging beam billet handling crane, the hoisting mechanism is provided with one or two guide cylinders, which are used to connect the hanging beam and the trolley. Due to the guiding function of the guide cylinder, the swing of the wire rope system is reduced, and the lifting movement is more stable;
④Various product forms, including: universal electromagnetic hanging beam billet handling crane, (upper, middle, lower) rotary electromagnetic hanging beam billet handling crane, special electromagnetic hanging beam billet handling crane, etc., which can be customized as needed.





Weihua Electromagnetic Hanging Beam Billet Handling Crane Product Specifications

The electromagnetic hanging beam billet handling crane has different requirements for different purposes and different environments, and the product specifications can be customized on demand.
Basic specification range of Weihua electromagnetic hanging beam billet handling crane:
Lifting weight: 12.5t~65t
Span: 17m~42m
Lifting height: 5m~20m
Working level: A7~A8
